Matrox Monarch HD web broadcaster

Live streaming enhet med HDMI Video Ingång

13 499 kr
  • Lagerstatus: Beställningsvara
  • Frakt från: 0 kr
  • Artikelnr.
  • 5010778211
  • Tillv. art. nr.
  • MHD/I

Produktinformation

Progressive:

1920x1080 @ 60/59.94/50/24/23.98 Frames per second

1280x720@ 60/59.94/50 Frames per second

Interlaced:

1920x1080i 29.97/25 frames per second

Video Input Format is Auto-Detected

HDMI Video Output

Pass-through of video input signal. 1 Frame delay from input to output

Audio Input:

Processes first two channels of audio embedded in HDMI input signal

Unbalanced analog stereo input via 1/8? (3.5mm) jack

Line Level

Audio Output:

Passthrough of all embedded audio channels in HDMI signal

Unbalanced analog stereo output via 1/8? (3.5mm) jack ? passthrough of input Line Level

H.264/MPEG-4 Part 10(AVC) Video Encoder

Resolutions:

Selectable encoding resolutions ranging from:

96x96 to 1920x1080

Bit Rates Ranges:

100 kbps to 30 Mbps - for recording

100 kbps to 20 Mbps - for streaming

Note that when both streaming and recording resolutions are above 1280 x 720, the encode parameters must be identical for both processes. Independent record and streaming settings are available when either the streaming or the recording resolution is 1280 x 720 or below.



Encode Frame Rates:



Encode frame rates representing 1:1, ½ and ¼of the input frames rates are supported.



Note that the maximum encoded frame rate is 30fps when input resolution is 1920x1080.



Encoding Profiles:



Baseline, Main and High



Encoding Controls:



2.0, 3.0, 3.1, 4.0, 4.1 Level Support

IBP GOP size and structure

Variable bite rate support

Deblocking Filter





MPEG-4 AAC Audio Encoder



Standard



AAC-LC



Sample Frequency:



44.1 and 48 kHz when digitized from analog source



Channels:



2 channels Stereo (L/R)





Bit Rates:



Range from 96 kbps to 256 kbps





Scaler:



High Quality multi-tap 10 bit Scaler and De-Interlacer

Advanced Noise filtering

Available to both streaming and recording operations



Recording File Format



File Type



Industry Standard MP4 with two channels of embedded AAC audio



Network Interfaces



Connector:



RJ45 providing 10/100/1000 Base-T Ethernet with Static or DHCP addressing





Protocols:



RTMP, RTSP/RTP

IPv4 Support

Unicast and Multi Unicast



User Interface:



Computer Based control



HTTP via standard PC or Mac Web browser





Physical Interface:

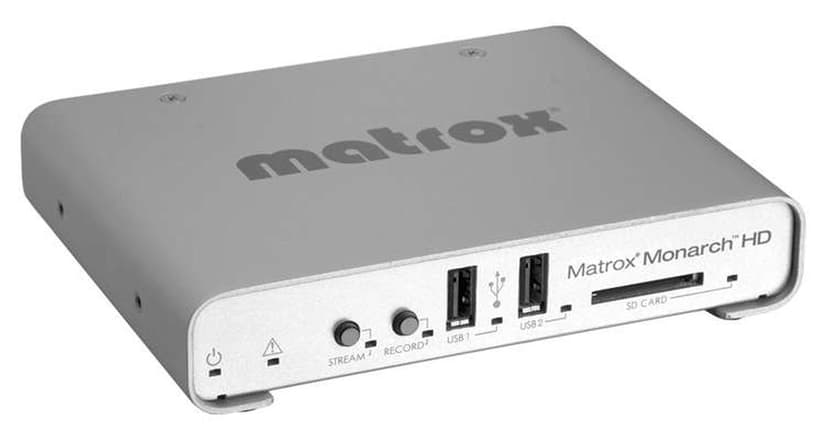

On Device push buttons for independent streaming and recording Start/Stop control





Storage Types for File Recording:



2 x USB 2.0



Support for NTFS file system

Note, the Monarch HD will support writing to USB3 devices at USB2 speeds.





1 x SD card Slot



Supports SD and SDHC cards





Network Mapped Drive:



Support for writing to Shared Folders in Computers found on Network using NFS or Windows Share protocols





Matrox Command Center Web UI





Status Page:



Provides relevant operational information concerning Status of MonarchHD unit at that time including; Input video detection and resolution, State and configuration of Streaming operation, State and configuration of Recording operation, Error conditions, etc...





Control Page:



Recording and Streaming operations initiated here including Synchronized start/stop operations. Multiple Monarch devices can be synchronized in a Master/Slave topology to allow for synchronized record and streaming operations across multiple units via a single interface.





Record Settings:



Configuration of recording parameters set within this page. A number of presets are included which are selected based on post event use of the recorded Asset. If file is to be uploaded for VOD purposes, a YouTube preset may be selected. If content is to be edited for high quality production, a master quality preset may be preferable.





Streaming Settings:



Configuration of Streaming parameters performed on this page. The RTMP or RTSP credentials as well as encoding parameters are entered. While a preset cannot include the streaming credentials, encoder presets have been included to quickly select an ideal encoders settings based on desired delivery resolution or bitrate. The Monarch HD will have been tested with a number of CDN providers as well as feeding Wowza Media servers and Adobe Media Server platforms.





Administrative tools:



Device Naming, IP configuration, Date/Time settings and a variety of other tasks performed via this page





Additional Tools:



Matrox provide PC or Mac based utilities to help detect Monarch Device on a particular Network (DHCP server required)





Dimensions:



5.60 in. long (14.2 cm)

4.30 in. deep (10.9 cm) excluding inserted SD-CARD,

4.40 in. deep (11.2 cm) including inserted SD-CARD,

1.22 in. (3.1 cm) high including rubber feet





Weight:



0.66 lbs (300 grams) excluding power supply





Operating conditions:



32 to 104 deg. F (0 to 40 deg. C), 20 to 80% relative humidity (non-condensing)



Power:



?Line Voltage: 100-240V AC, 0.5A

?Frequency: 50-60 Hz

?Input: External AC/DC adapter - IEC320-C14

?Output: +5VDC, 3A max

?Total power consumption: 15 Watts

?DIN4 Locking Power Connector





Transport and Storage:



Max Operating Altitude: 3000 meters

Max Transport altitude: 12,000 meters

Storage Humidity 5 to 95% relative humidity (non-condensing)





Regulatory:



?FCC Class B, CE Mark Class B, ACMA C-Tick Mark, VCCI

?RoHS Directive 2002/95/EC





Warranty:



2 years with free telephone support





Kit Contents:



?Matrox Monarch HD device

?Matrox Monarch HD external power supply

?IEC-C13 power cord (US and EU)

?GB/AU Adapter

Specifikationer

Allmänt
Tillverkare Matrox Graphics
Modell HD
Märke Matrox
Produktlinje Matrox Monarch
Strömtillförsel
Markspänning AC 120/230 V
General
Type Web broadcaster
Service och support
Garanti 2 år
Mått och vikt
Yttermått bredd 14.2 cm
Yttermått djup 10.9 cm
Yttermått höjd 3.1 cm
Vikt 0.3 kg
