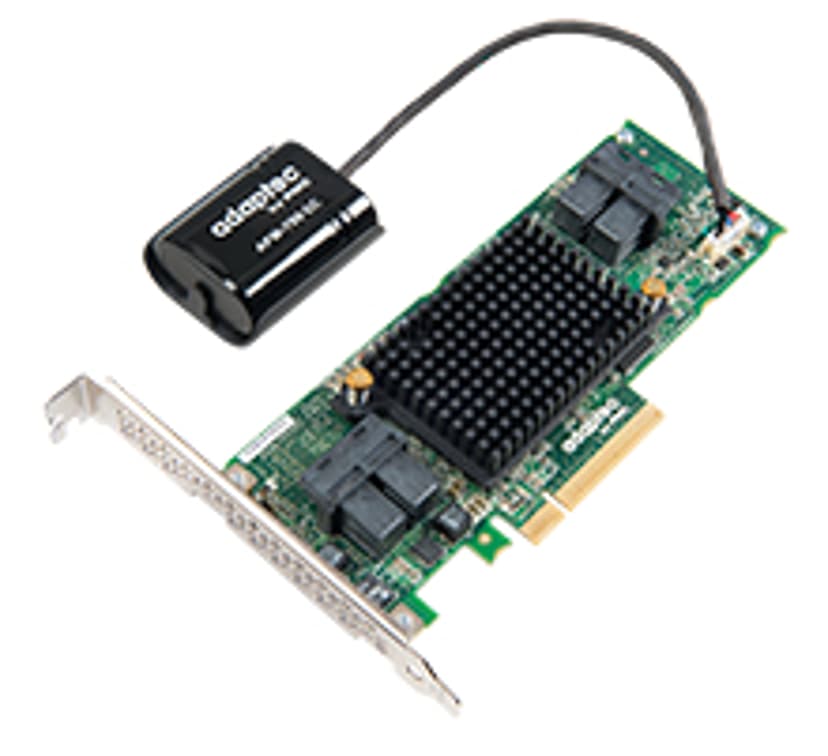

Adaptec 81605ZQ

12 995 kr
  • Lagerstatus: Beställningsvara
  • Frakt från: 0 kr
  • Artikelnr.
  • 5010821607
  • Tillv. art. nr.
  • 2281600-R


PCIe 3.0 x8
SATA 6Gb/s / SAS 12Gb/s


  • PMC's PM8063 RAID-on-Chip (ROC), x 8 PCIe generation 3 interface with 12 Gbps SAS ports to enable the performance
  • 16 native SAS/SATA ports in a LP/MD2 design
  • 12 Gbps throughput with mini SAS HD connectors
  • More than 700K IOPS, 6.6 Gbps sequential reads, 5.2 Gbps sequential writes


Data center, IT, and general consumer server environments have a broad range of requirements - from basic connectivity to extreme data storage capacities. The effectiveness at which their data is accessed and protected is crucial to their ultimate success. Adaptec 12 Gbps PCIe generation 3 series 8 RAID adapters, coupled with 12 Gbps SSDs, provide maximum read/write bandwidth and IOPS for the most performance-hungry transactional and database applications.

Single does not include cables


Tillverkare Adaptec
Förpackad kvantitet 1
Modell 81605ZQ
Kompatibilitet PC
Produktlinje Adaptec
Produkttyp Kontrollerkort (RAID)
Anslutning PCIe 3.0 x8
Gränssnitt SATA 6Gb/s / SAS 12Gb/s
Antal kanaler 16
Formfaktor Instickskort
Max antal enheter 256
RAID-stöd RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1E
Enheter som stöds Hårddisk, Disk array (RAID), Halvledarenhet
Antal kanaler 16
Storage Controller
Data Transfer Rate 1.2 GBps
Software Included Adaptec Storage Manager, Adaptec maxCache Plus
Device Type Storage controller (RAID) - plug-in card - low profile
Operativsystem erfordras SunSoft Solaris, FreeBSD, Red Hat Linux, Ubuntu, VMware ESXi, SuSe Linux, Microsoft Windows, Debian Linux
Expansion / Connectivity
Interfaces 4 x SATA 6Gb/s / SAS 12Gb/s - 36 pin 4x Mini SAS HD (SFF-8643) ( internal )
Compliant Standards
Compliant Standards UL, VCCI, C-Tick, FCC, RoHS, KCC
Temperatur vid drift
Lägsta temperatur vid drift 0 °C
Högsta temperatur vid drift 55 °C
Service och support
Service & support 3 års garanti
Service & Support detaljer 3 år
Service & Support 3 år
Mått och vikt
Yttermått djup 16.7 cm
Yttermått höjd 6.4 cm
