PCI-E SATA&SAS kort
(0 recensioner)

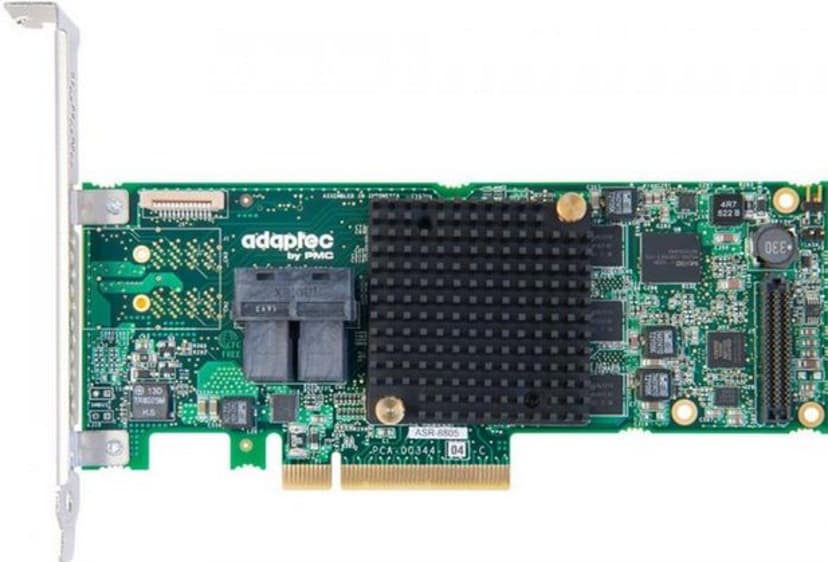

Adaptec 8805

6 995 kr
  • Lagerstatus: Beställningsvara
  • Frakt från: 0 kr
  • Artikelnr.
  • 5010823076
  • Tillv. art. nr.
  • 2277500-R

Snabbfakta

Anslutning
PCIe 3.0 x8
Gränssnitt
SATA 6Gb/s / SAS 12Gb/s

Nyckelfunktioner

  • Ideal for 12 Gb/s performance-hungry server and workstations platforms, without compromising proven Adaptec reliability
  • High I/O transaction and high bandwidth processing; solutions that reduce energy consumption and maintenance costs
  • Flexible configuration: HBA mode and auto volume mode for automatic deployment
  • Optimized disk utilization (multiple arrays per disk)
  • Supports up to 256 SAS or SATA devices using SAS expanders
  • Supported RAID levels: 0, 1, 1E, 5, 6, 10, 50, 60
  • Support for native 4K sector SAS and SATA devices in addition to 512 byte sector devices



  • Hybrid RAID 1 and 10
  • Quick initialization
  • Online capacity expansion
  • Copyback hot spare
  • Dynamic caching algorithm
  • Native command queuing (NCQ)
  • Background initialization

Produktinformation

Data center, IT, and general consumer server environments have a broad range of requirements - from basic connectivity to extreme data storage capacities. The effectiveness at which their data is accessed and protected is crucial to their ultimate success. The Adaptec series 8 12 Gb/s RAID Adapter product family directly addresses the connectivity, performance, and data protection needs, unmatched by anything in the industry.

Specifikationer

Allmänt
Tillverkare Adaptec
Förpackad kvantitet 1
Modell 8805
Produktlinje Adaptec
Produkttyp Kontrollerkort (RAID)
Enhetstyp Storage controller (RAID) - plug-in card - low profile
Kontrollerkort
Anslutning PCIe 3.0 x8
Gränssnitt SATA 6Gb/s / SAS 12Gb/s
Antal kanaler 8
Formfaktor Instickskort
Max antal enheter 256
RAID-stöd RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1E
Enheter som stöds Disk array (RAID)
Antal kanaler 8
Storage Controller
Data Transfer Rate 1.2 GBps
Systemkrav
Operativsystemsstöd SunSoft Solaris, FreeBSD, Red Hat Linux, Ubuntu, VMware ESXi, SuSe Linux, Microsoft Windows, Debian Linux
Medföljande programvara
Inkluderad programvara Adaptec Storage Manager, Adaptec maxCache Plus
Standarder som följs
Kompatibel standard UL, VCCI, C-Tick, FCC, RoHS, KCC
Miljö Parametrar
Lägsta temperatur vid drift 0 °C
Högsta temperatur vid drift 55 °C
Expansion/Anslutning
Anslutningar 2 x SAS 12Gb/s - 36 pin 4x Mini SAS HD (SFF-8643) ( internal )
Mått och vikt
Yttermått djup 16.7 cm
Yttermått höjd 6.4 cm
Service och support
Service & support 3 års garanti
Service & Support detaljer 3 år
Service & Support 3 år
