Axis F1035-E Sensor Unit

AXIS F1035-E sensorenhet med en 3 meter lång kabel till huvudenheten. IP66-klassad. Används med AXIS F Series Main Units. Fisheye-objektiv som ger 194 ° horisontellt FOV. Full HDTV 1080p upplösning och stöd för WDR - Forensic Capture tillsammans med AXIS F41 Main Unit. Inkluderar en AXIS F8201 vinklingsmonteringsfäste.

Discreet, wide area surveillance

AXIS F1035-E Sensor Unit, together with an AXIS F Main Unit, provides wide area coverage with a fisheye view. It is ideal for highly discreet overview surveillance in indoor, outdoor and mobile surveillance applications; for example, at entrances, long corridors, around an ATM (automated teller machine), in emergency vehicles, buses and trams.

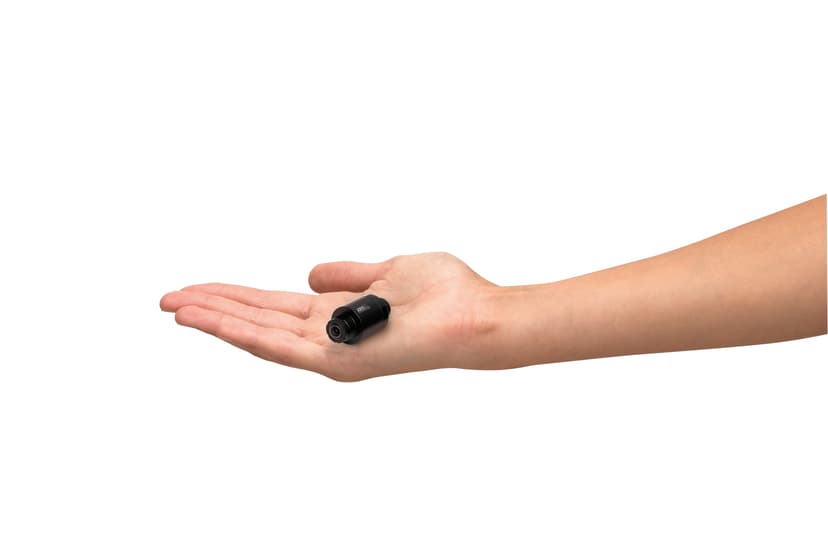

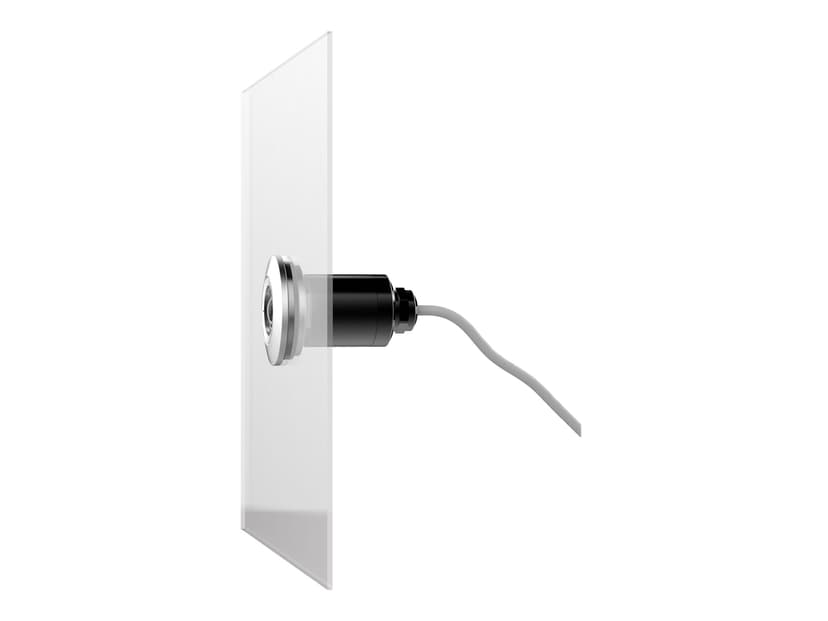

The small sensor unit can be installed in tight places, flush-mounted in a wall or ceiling, or incorporated in a lightbar on top of an emergency vehicle. The rugged, IP66-rated AXIS F1035-E withstands dust, rain, snow, vibrations, shock and temperature fluctuations.

AXIS F1035-E comprises an image sensor with 1080p resolution (1920 x 1080 pixels) and a fisheye lens that provides a 194° horizontal field of view.
AXIS F1035-E also supports Wide Dynamic Range (WDR) – Forensic Capture, which can be activated when the sensor unit is connected to a main unit that supports this feature. WDR – Forensic Capture enables a high level of detail to be visible in both the bright and dark areas of a scene.

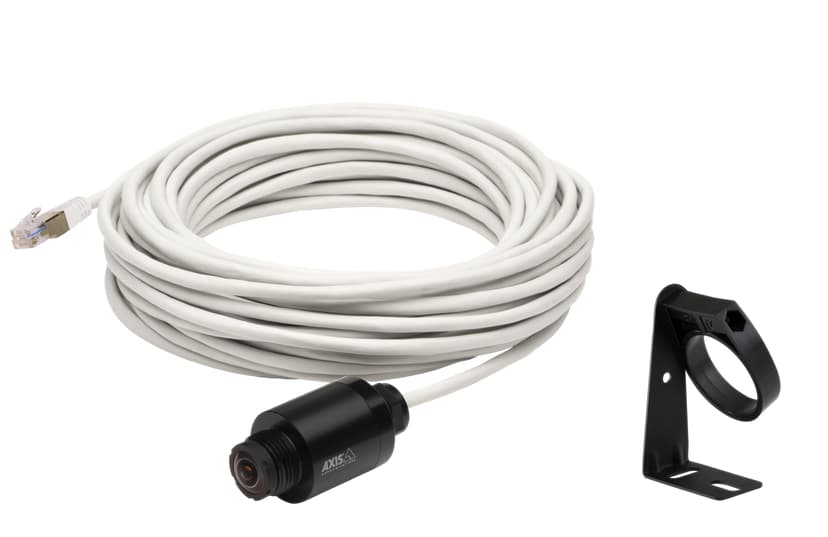

AXIS F1035-E is available with a 3-m or 12-m (10-ft. or 39-ft.) pre-mounted cable for connection to an AXIS F Main Unit. The main unit can be placed further away in an indoor location, inside a vehicle or in an outdoor enclosure.

AXIS F1035-E comes with an AXIS F8201 Vari-angle Mounting Bracket that enables the sensor unit to be secured and tilted in any position.

Features

Flexible, rugged design for indoor, outdoor and mobile use

Fisheye lens with 1080p resolution

Ultra-wide 194° horizontal field of view

Supports WDR – Forensic Capture (with AXIS F41/F44 Main Unit)
