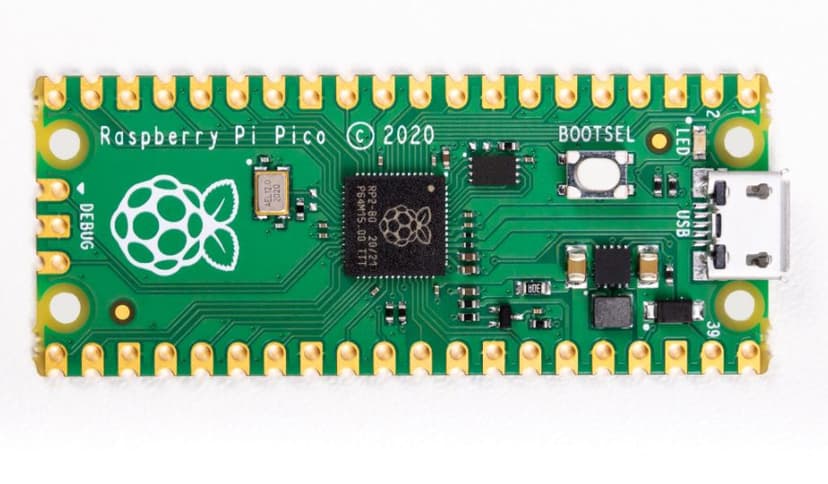

Raspberry Pi Pico

Nytt tillskott från framgångsrika Raspberry Pi, RP2040 / PICO är en flexibel mikrokontroller, med dubbelkärnig ARM COrtex-M0+ processor med 256KB inbygd RAM samt stöd för upp till 16MB off-chip Flash. Kommer med en bred flexibel uppsättning I/O anslutnigspunkter, I2C, SPI, och programerbara I/O (PIO). Endast fantasin sätter gränser vad ni kan göra med denna.

• 21 mm × 51 mm form factor
• RP2040 microcontroller chip designed by Raspberry Pi in the UK
• Dual-core Arm Cortex-M0+ processor, flexible clock running up to 133 MHz
• 264KB on-chip SRAM
• 2MB on-board QSPI Flash
• 26 multifunction GPIO pins, including 3 analogue inputs
• 2 × UART, 2 × SPI controllers, 2 × I2C controllers, 16 × PWM channels
• 1 × USB 1.1 controller and PHY, with host and device support
• 8 × Programmable I/O (PIO) state machines for custom peripheral support
• Supported input power 1.8–5.5V DC
• Operating temperature -20°C to +85°C
• Castellated module allows soldering direct to carrier boards
• Drag-and-drop programming using mass storage over USB
• Low-power sleep and dormant modes
• Accurate on-chip clock
• Temperature sensor
• Accelerated integer and floating-point libraries on-chip
